快速入门深度学习——Tensorflow

前言:近几年AI、神经网络、深度学习这些词语频繁出现,我发现相关的文章已经几乎看不懂了,感觉到了不学就会落伍的地步了。带着这种危机感,趁着工作上能接触到深度学习,我也开始学习起来了。

环境搭建

  • Mac和Pc都可以使用
  • IDE使用 PyCharm
  • Python版本 3.6.8(之前使用3.7版本,发现无法安装TensorFlow)

python 3.7版本安装TensorFlow 会有下面的提示,需要切换到3.6或者其他版本
Could not find a version that satisfies the requirement tensorflow (from versions: )
No matching distribution found for tensorflow

  1. PyCharm里选择"Project Interpreter",选择Python 3.6,点击“+”添加库
    在这里插入图片描述
  2. 搜索"tensoflow",点击安装
    在这里插入图片描述
  3. 测试TensorFlow环境是否安装成功

    from __future__ import absolute_import, division, print_function
    import tensorflow as tf
    from tensorflow import keras

输出TensorFlow版本号

print(tf.version)

能输出TensorFlow的版本号即表示环境没问题了

#### 代码 ####
下面官网介绍的demo:

加载素材库

fashion_mnist = keras.datasets.fashion_mnist
(train_images, train_labels), (test_images, test_labels) = fashion_mnist.load_data()


定义数字对应的物品名称

class_names = ['T-shirt/top', 'Trouser', 'Pullover', 'Dress', 'Coat',
'Sandal', 'Shirt', 'Sneaker', 'Bag', 'Ankle boot']


适配tensorflow的数据格式

train_images = train_images / 255.0
test_images = test_images / 255.0

def create_model():
model = tf.keras.models.Sequential([
keras.layers.Flatten(input_shape=(28, 28)),
keras.layers.Dense(128, activation=tf.nn.relu),
keras.layers.Dense(10, activation=tf.nn.softmax)
])
model.compile(optimizer='adam',
loss='sparse_categorical_crossentropy',
metrics=['accuracy'])
return model


开始训练模型

model.fit(train_images, train_labels, epochs = 10,
validation_data = (test_images,test_labels))

评估模型精确度

loss,acc = model.evaluate(test_images, test_labels)
print("Restored model, accuracy: {:5.2f}%".format(100*acc))

保存模型,下次就可以跳过训练模型这一步

model.save('my_model.h5')

读取之前训练好的模型

model = keras.models.load_model('my_model.h5')

使用模型进行预测

predictions = model.predict(test_images)

输出第一个图片的预测结果

print(np.argmax(predictions[0]))

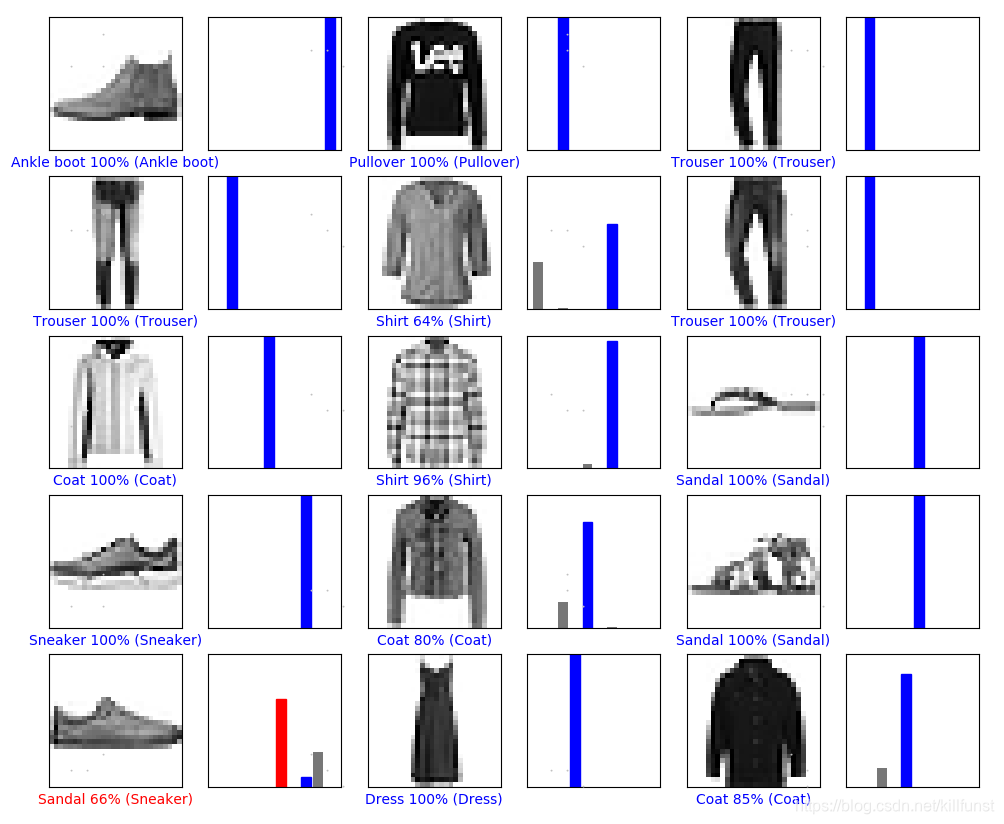

绘制所有结果

import numpy as np
import matplotlib.pyplot as plt
def plot_image(i, predictions_array, true_label, img):
predictions_array, true_label, img = predictions_array[i], true_label[i], img[i]
plt.grid(False)
plt.xticks([])
plt.yticks([])

plt.imshow(img, cmap=plt.cm.binary)

predicted_label = np.argmax(predictions_array)
if predicted_label == true_label:
    color = 'blue'
else:
    color = 'red'

plt.xlabel("{} {:2.0f}% ({})".format(class_names[predicted_label],
                                     100 * np.max(predictions_array),
                                     class_names[true_label]),
           color=color)

def plot_value_array(i, predictions_array, true_label):
predictions_array, true_label = predictions_array[i], true_label[i]
plt.grid(False)
plt.xticks([])
plt.yticks([])
thisplot = plt.bar(range(10), predictions_array, color="#777777")
plt.ylim([0, 1])
predicted_label = np.argmax(predictions_array)

thisplot[predicted_label].set_color('red')
thisplot[true_label].set_color('blue')

num_rows = 5
num_cols = 3
num_images = num_rowsnum_cols
plt.figure(figsize=(2
2num_cols, 2num_rows))
for i in range(num_images):
plt.subplot(num_rows, 2num_cols, 2i+1)
plot_image(i, predictions, test_labels, test_images)
plt.subplot(num_rows, 2num_cols, 2i+2)
plot_value_array(i, predictions, test_labels)

plt.show()



![在这里插入图片描述](https://img-blog.csdnimg.cn/20190213180135138.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2tpbGxmdW5zdA==,size_16,color_FFFFFF,t_70)
